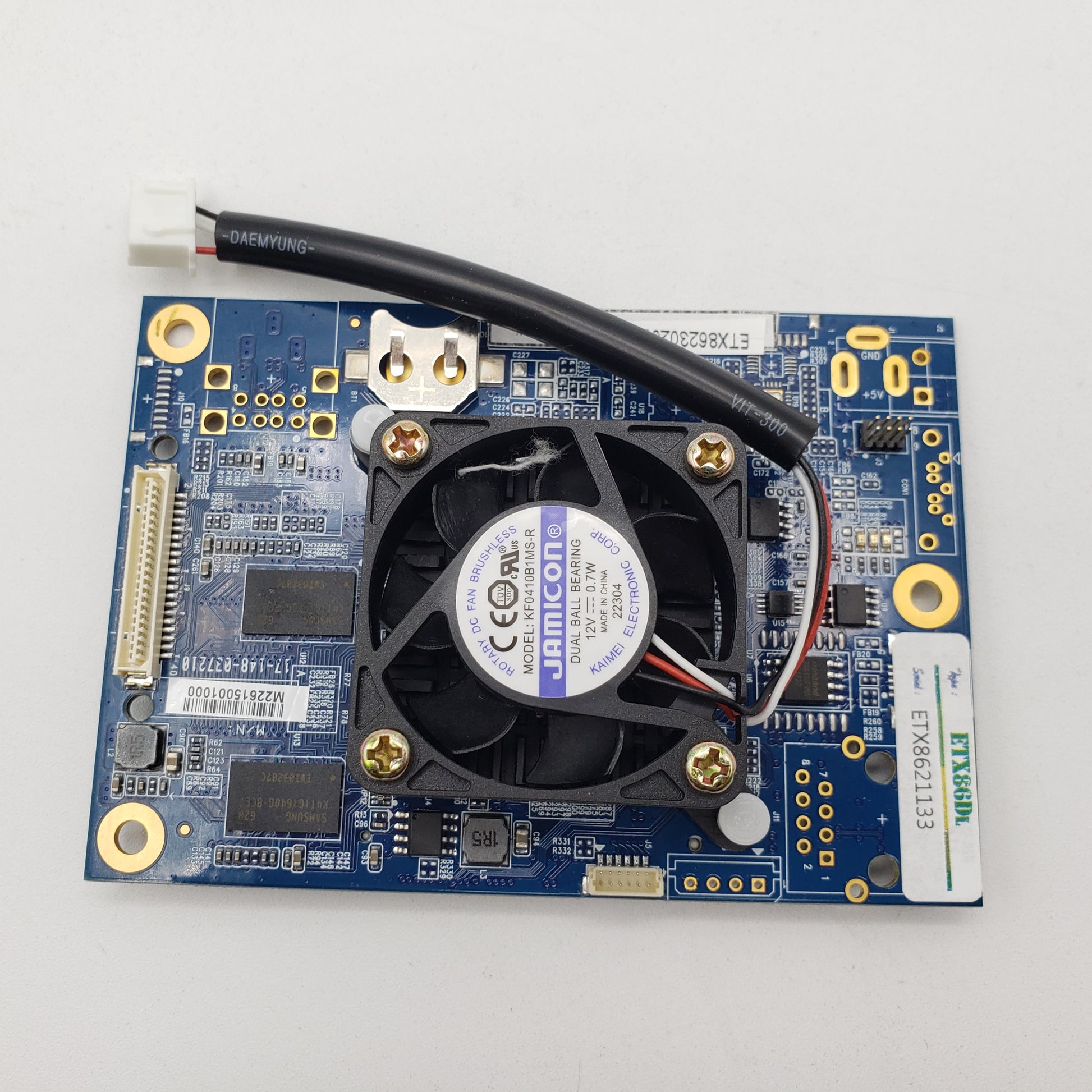

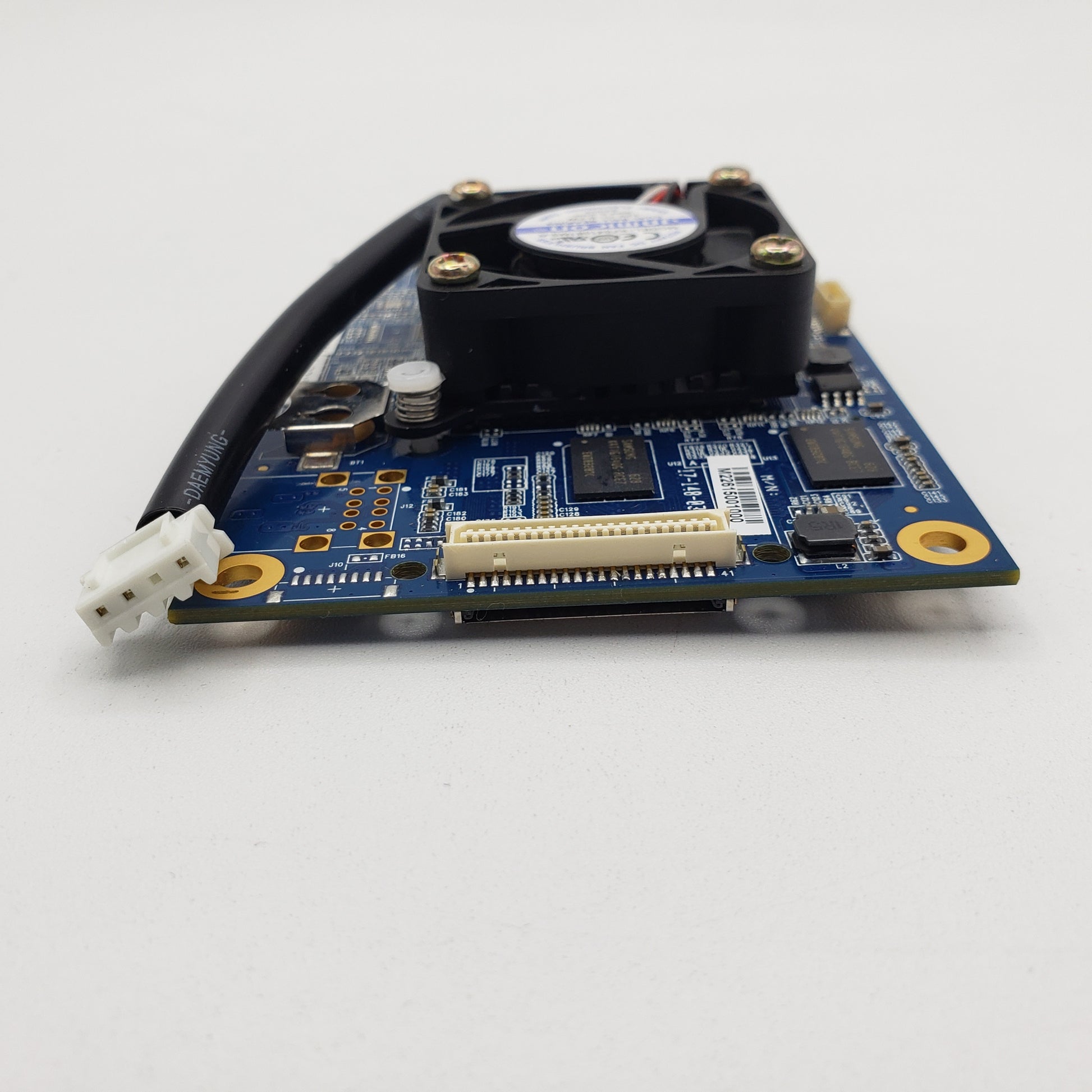

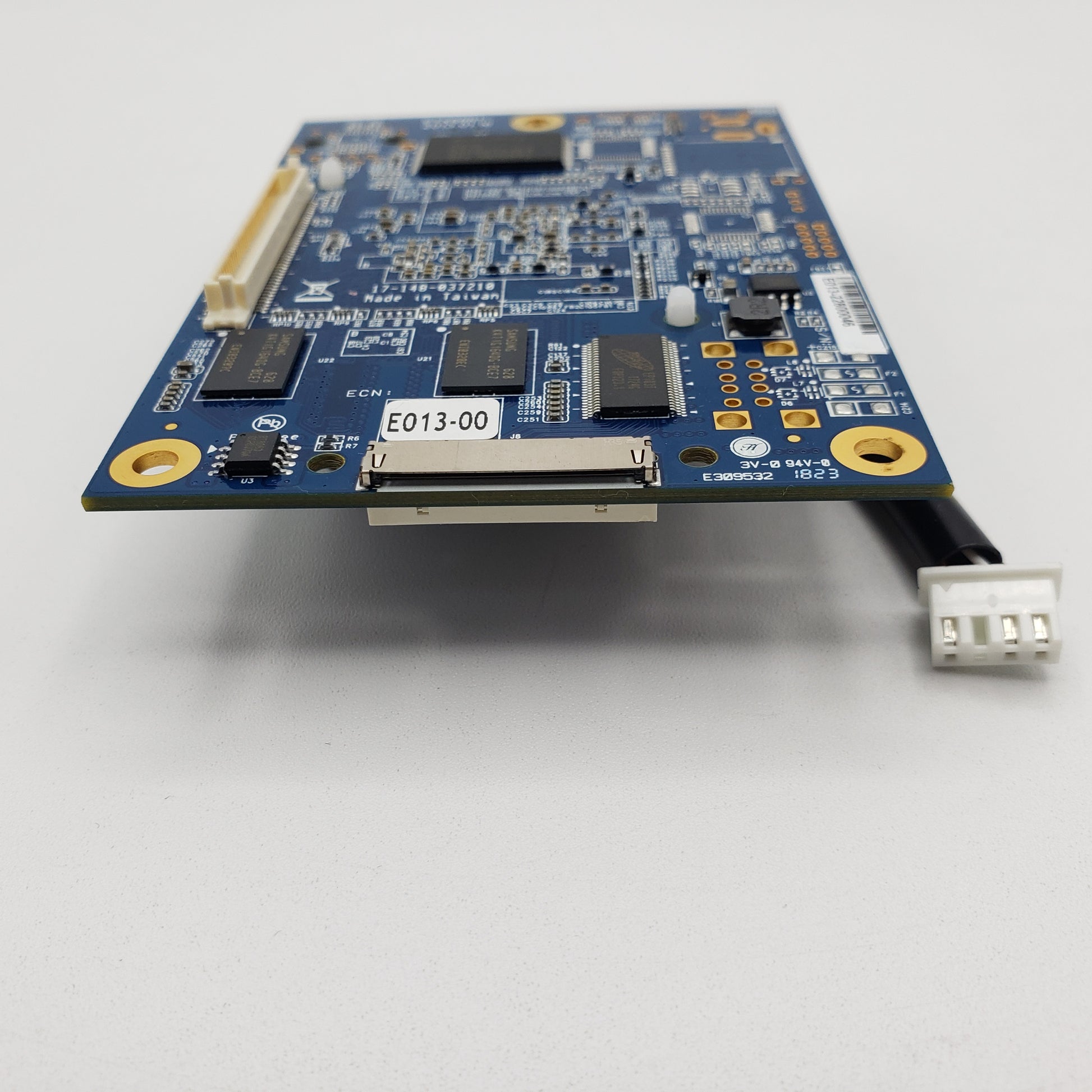

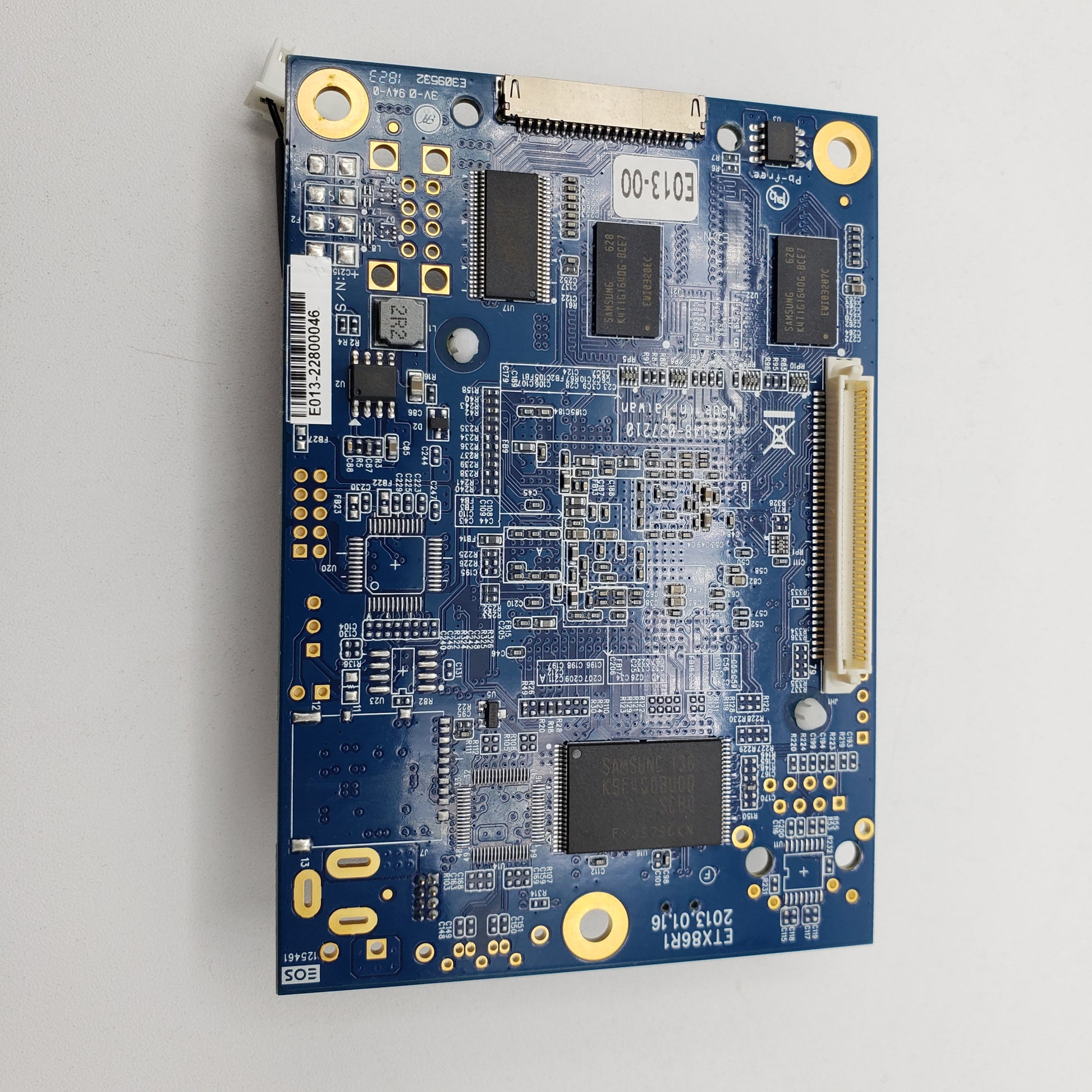

SWF_ETX86DL CPU BOARD (6.5")

Part No. BD-001720-02, Genuine SWF_ETX86DL CPU BOARD (6.5")

※ Note

For the following SWF models:

SWF/E-T601C, T901C, T1201C, T1501C – Single Head Compact
SWF/E-T1201, E-T1501 – Single Head Full Size

The ETX86 Base Board must be replaced together with the new-type CPU Board, as the existing Base Board is not compatible with the new-type CPU Board.

Part No.: BD-000444-08 — ETX86 BASE (REV 4.3) BD ASS’Y

※Note

SWF/E-Tubular Series 2~8 Head Machine.

When replacing the old ETX550 CPU Board with the new-type ETX86DL CPU BOARD (6.5") , the following components must be replaced together:

• Part No. BD-000779-05 — SMALL IO BOARD E+ (M16C-P)

• Part No. BD-000444-08 — ETX86 BASE (REV 4.3) BOARD ASS'Y

Important: The ETX86DL CPU BOARD (6.5") is not intended to be replaced independently. The SMALL IO BOARD E+ (M16C-P) and ETX86 Base Board must be replaced together with the new-type ETX86DL CPU BOARD (6.5")
